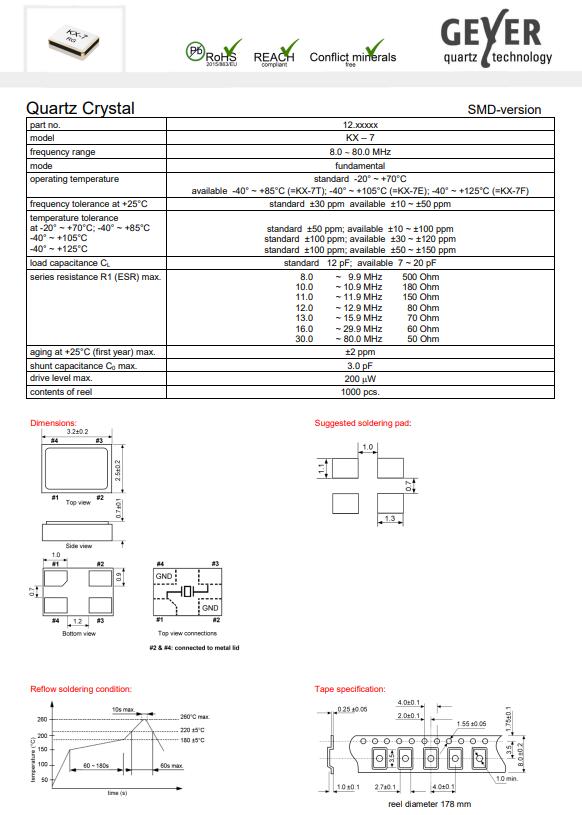

12.60233 KX-7T 3225 25M 12PF 20PP 丹麥格耶GEYER晶振
石英晶體和音叉晶體–精確且恒定
我們從自己生產的石英晶體和音叉晶體中供應,用于將最高精度和可靠性放在首位的工業應用.
我們通過各種組件的可持續性、可靠性和可用性來說服我們的客戶.
此外,格耶晶振GEYER晶振我們提供至少20年的長期交付保證,使我們能夠支持久經考驗的應用和新趨勢.
滿足苛刻要求的晶體
盡可能小的尺寸
可靠的信號傳輸
+25°C時的標準公差僅為+/-10ppm,由于基本公差更嚴格,→開關精度更高
在-40°C至+85°C時,標準公差僅為+/-15ppm,→在溫度范圍內的偏差較小
由于更好的瞬態響應和更低的功率要求,低ESR值→較低的電路電流消耗
車規溫度-40°C至+150°C的擴展溫度范圍,進口晶振適用于汽車和特殊應用
第一年老化率低,僅為+/-2ppm
為某些應用（如智能電表）提供長期老化保證
適用于汽車應用的AEC-Q200認證晶體可在商店中找到
歐美進口晶振,機器人晶振KDS晶振

晶振編碼	制造商	晶振參數描述	型號	頻率容差	工作溫度	腳位	尺寸	GEYER晶振制造商
12.60233	GEYER	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	±20ppm	-40°C ~ 85°C	4	3225	Geyer Electronic America, Inc.
12.86511	GEYER	Crystal 18.4320Mhz 10pF SMD	KX-6	±30ppm	-20°C ~ 70°C	4	2520	Geyer Electronic America, Inc.
12.8655	GEYER	Crystal 16.0Mhz 10pF SMD	KX-6E	±30ppm	-40°C ~ 105°C	4	2520	Geyer Electronic America, Inc.
12.85521	GEYER	CYSTAL 26.0MHZ 10PF SMD	KX-5T	±10ppm	-40°C ~ 85°C	4	2016	Geyer Electronic America, Inc.
12.88508	GEYER	Crystal 24.0Mhz 12pF SMD	KX-7T	±20ppm	-40°C ~ 85°C	4	3225	Geyer Electronic America, Inc.
12.86574	GEYER	Crystal 27.0Mhz 8pF SMD	KX-6F	±30ppm	-40°C ~ 125°C	4	2520	Geyer Electronic America, Inc.
12.87149	GEYER	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.87147	GEYER	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	±10ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.87081	GEYER	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.87174	GEYER	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	±20ppm	-40°C ~ 85°C	2	1610	Geyer Electronic America, Inc.
12.87143	GEYER	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.8718	GEYER	Crystal 32.7680kHz 9pF SMD	KX-327NHF	±20ppm	-40°C ~ 125°C	2	3215	Geyer Electronic America, Inc.
12.87181	GEYER	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	±20ppm	-40°C ~ 125°C	2	3215	Geyer Electronic America, Inc.
12.8715	GEYER	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.87148	GEYER	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	±20ppm	-40°C ~ 85°C	2	3215	Geyer Electronic America, Inc.
12.8716	GEYER	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	±20ppm	-40°C ~ 85°C	4	2016	Geyer Electronic America, Inc.
12.87163	GEYER	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	±20ppm	-40°C ~ 85°C	2	2012	Geyer Electronic America, Inc.
12.86544	GEYER	Crystal 16.0Mhz 10pF SMD	KX-7E	±30ppm	-40°C ~ 105°C	4	2520	Geyer Electronic America, Inc.

Quartz crystals and tuning fork crystals - precise and constant
We supply from our own quartz crystals and tuning fork crystals for industrial applications where the highest precision and reliability is a priority.
We convince our customers by the sustainability, 石英晶振reliability and availability of our various components.
In addition, we offer a long-term delivery guarantee of at least 20 years, allowing us to support proven applications and new trends.
Crystals that meet demanding requirements
The smallest possible size

Reliable signal transmission
The standard tolerance at +25°C is only +/-10ppm, and the → switching accuracy is higher due to tighter basic tolerances
At -40°C to +85°C, the standard tolerance is only +/-15 PPM,→ less deviation over the temperature range
Lower ESR values result in lower circuit current consumption due to better transient response and lower power requirements

Extended temperature range 石英晶體振蕩器from -40°C to +150°C for automotive and special applications
The aging rate in the first year was low, only +/-2ppm
Long-term aging assurance for certain applications, such as smart meters
AEC-Q200 certified crystals for automotive applications can be found in stores
歐美進口晶振,機器人晶振

歐美進口晶振,機器人晶振壹兆電子
